ICE Products

El-Handassia

ICE Products

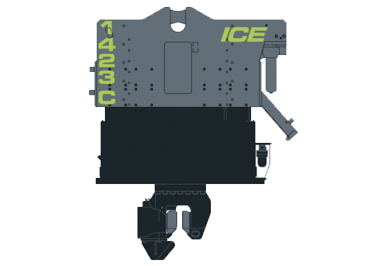

ICE 1423C

Excentric moment: 14 kgm
Max. centrifugal force: 812 kN
Max. frequency: 2300 rpm

Awesome Image

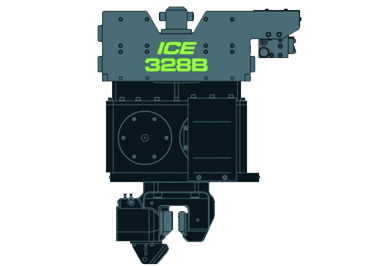

ICE 328B

Excentric moment: 3.2 kgm
Max. centrifugal force: 275 kN
Max. frequency: 2800 rpm

Awesome Image

ICE 428B

Excentric moment: 4.6 kgm
Max. centrifugal force: 395 kN
Max. frequency: 2800 rpm

Awesome Image

ICE 625B

Excentric moment: 6 kgm
Max. centrifugal force: 411 kN
Max. frequency: 2500 rpm

Awesome Image

ICE 823B

Excentric moment: 8 kgm
Max. centrifugal force: 464 kN
Max. frequency: 2300 rpm

Awesome Image

ICE 1223B

Excentric moment: 11.5 kgm
Max. centrifugal force: 670 kN
Max. frequency: 2300 rpm

Awesome Image

ICE 416L

Excentric moment: 23 kgm
Max. centrifugal force: 645 kN
Max. frequency: 1600 rpm

Awesome Image

ICE 328SH

Excentric moment: 3.2 kgm
Max. centrifugal force: 275 kN
Max. frequency: 2800 rpm

Awesome Image

ICE 32NF

Excentric moment: 32 kgm
Max. centrifugal force: 955 kN
Max. frequency: 1650 rpm

Awesome Image

ICE 428SH

Excentric moment: 4 kgm
Max. centrifugal force: 345 kN
Max. frequency: 2800 rpm

Awesome Image

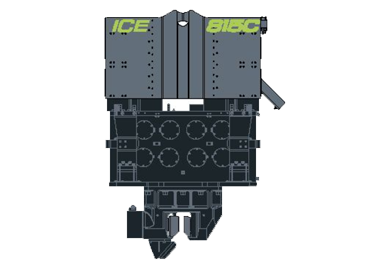

ICE 815C

Excentric moment: 46 kgm
Max. centrifugal force: 1250 kN
Max. frequency: 1570 rpm

Awesome Image

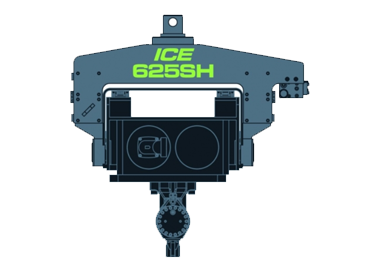

ICE 625SH

Excentric moment: 6 kgm
Max. centrifugal force: 410 kN
Max. frequency: 2500 rpm

Awesome Image

ICE 55NF

Excentric moment: 54 kgm
Max. centrifugal force: 1711 kN
Max. frequency: 1700 rpm

Awesome Image

ICE 823SH

Excentric moment: 8 kgm
Max. centrifugal force: 464 kN
Max. frequency: 2300 rpm

Awesome Image

ICE 82NF

Excentric moment: 81 kgm
Max. centrifugal force: 2570 kN
Max. frequency: 1700 rpm

Awesome Image

ICE 1412C

Excentric moment: 110 kgm
Max. centrifugal force: 2300 kN
Max. frequency: 1380 rpm

Awesome Image

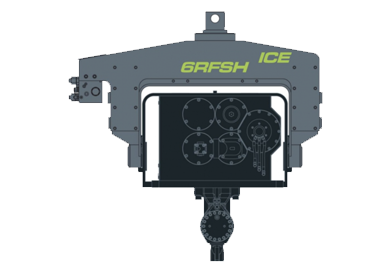

ICE 6RFSH

Excentric moment: 0 – 6.5 kgm
Max. centrifugal force: 0 – 377 kN
Max. frequency: 2300 rpm

Awesome Image

ICE 8RFSH

Excentric moment: 0 – 7.5 kgm
Max. centrifugal force: 0 – 435 kN
Max. frequency: 2300 rpm

Awesome Image

ICE 130NF

Excentric moment: 130 kgm
Max. centrifugal force: 2794 kN
Max. frequency: 1400 rpm

Awesome Image

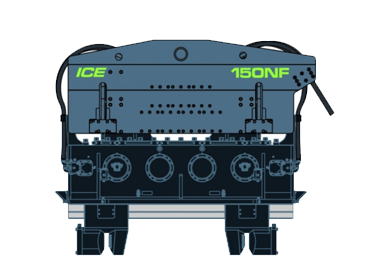

ICE 150NF

Excentric moment: 150 kgm
Max. centrifugal force: 3224 kN
Max. frequency: 1400 rpm

Awesome Image

ICE 170NF

Excentric moment: 170 kgm
Max. centrifugal force: 3654 kN
Max. frequency: 1400 rpm

Awesome Image

ICE 200NF

Excentric moment: 200 kgm
Max. centrifugal force: 4300 kN
Max. frequency: 1400 rpm

Awesome Image

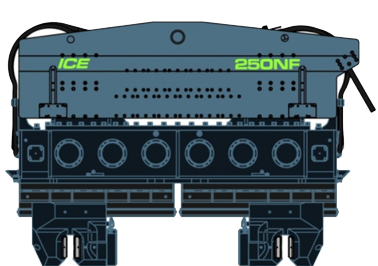

ICE 250NF

Excentric moment: 250 kgm
Max. centrifugal force: 5374 kN
Max. frequency: 1400 rpm

Awesome Image

ICE 300NF

Excentric moment: 286 kgm
Max. centrifugal force: 6150 kN
Max. frequency: 1400 rpm

Awesome Image

ICE 6RFB

Excentric moment: 0 – 6.5 kgm
Max. centrifugal force: 0 – 377 kN
Max. frequency: 2300 rpm

ICE 8RFB

Excentric moment: 0 – 7.5 kgm
Max. centrifugal force: 0 – 435 kN
Max. frequency: 2300 rpm

ICE 12RFB

Vibro hammer type: Variable Moment
Excentric moment: 0 – 12.0 kgm
Max. centrifugal force: 0 – 700 kN

ICE 20RFB

Excentric moment: 0 – 19.0 kgm
Max. centrifugal force: 0 – 1100 kN
Max. frequency: 2300 rpm

ICE 23RFB

Excentric moment: 0 – 23 kgm
Max. centrifugal force: 0 – 1350 kN
Max. frequency: 2300 rpm

ICE 400 Stage 3A

Diesel engine: Caterpillar C9
Max. power: 242/329 kW/HP
Max. frequency: 2200 rpm

ICE 400 Stage 4

Diesel engine: Volvo TAD 873 VE
Max. power: 235/320 kW/HP
Max. frequency: 2200 rpm

ICE 500 Stage 3A

Diesel engine: Volvo TAD 1352 GE
Max. power: 363/494 kW/HP
Max. frequency: 1800 rpm

ICE 500 Stage 4

Diesel engine: Volvo TAD 1374 VE
Max. power: 375/510 kW/HP
Max. frequency: 1800 rpm

ICE 600 Stage 3A

Diesel engine: Caterpillar C15
Max. power: 403/548 kW/HP
Max. frequency: 2100 rpm

ICE 600 Stage 4

Diesel engine: Volvo
Max. power: 405/551 kW/HP
Max. frequency: 1900 rpm

ICE 900 Stage 2

Diesel engine: Volvo TAD 1643 VE
Max. power: 565/768 kW/HP
Max. frequency: 1850 rpm

ICE 900 Stage 4

Diesel engine: Caterpillar C18
Max. power: 563/755 kW/HP
Max. frequency: 1800 rpm

ICE 1400 Stage

Diesel engine: Volvo TAD 1353 GE (2x)
Max. power: 898/1222 kW/HP
Max. frequency: 1800 rpm

ICE 1600 Stage

Diesel engine: Volvo TAD 1643 VE (2x)
Max. power: 1130/1536 kW/HP
Max. frequency: 1850 rpm

ICE 3200 Stage

Diesel engine: Volvo TAD 1643 VE (4x)
Max. power: 2260/3072 kW/HP
Max. frequency: 1850 rpm

Awesome Image
Awesome Image
Awesome Image

Clamps

Clamps are the connection between a vibratory hammer and the profile. ICE offers a wide range of clamps, with various clamping force and weight. Almost every type of profile can be driven or extracted.
  • Awesome Image TU series: sheet pile clamps for single or double sheets and H beams
  • Awesome Image TC series: tube clamps for tubes, pox piles or multiple sheets
  • Awesome Image TP series: pile clamps for concrete, wooden or steel tubes or piles
  • Awesome Image CS series: concrete sheet pile clamps, on request

Next to these clamps we have beams and x beams, and other accessories for special gripping arrangements. Please contact Sales Support for more for information and advice.

Klemmen

ICE 40TU

Clamp type: Sheet pile clamp
Clamp force: 400 kN
Operating pressure: 320 bar

ICE 60TU

Clamp type: Sheet pile clamp
Clamp force: 600 kN
Operating pressure: 320 bar

ICE 100TU

Clamp type: Sheet pile clamp
Clamp force: 1000 kN
Operating pressure: 320 bar

ICE 130TU

Clamp type: Sheet pile clamp
Clamp force: 1300 kN
Operating pressure: 320 bar

ICE 130T

Clamp type: Sheet pile clamp
Clamp force: 1300 kN
Operating pressure: 300 bar

ICE 160TU

Clamp type: Sheet pile clamp
Clamp force: 1600 kN
Operating pressure: 320 bar

ICE 200TU

Clamp type: Sheet pile clamp
Clamp force: 2000 kN
Operating pressure: 320 bar

ICE 320TU

Clamp type: Sheet pile clamp
Clamp force: 3200 kN
Operating pressure: 320 bar

ICE 350T

Clamp type: Sheet pile clamp
Clamp force: 3500 kN
Operating pressure: 320 bar

ICE 55TC

Clamp type: Double clamp
Clamp force: 550 kN
Operating pressure: 300 bar

ICE 80T

Clamp type: Double clamp
Clamp force: 800 kN
Operating pressure: 300 bar

ICE 81TC

Clamp type: Double clamp
Clamp force: 800 kN
Operating pressure: 320 bar

ICE 100TC

Clamp type: Double clamp
Clamp force: 1000 kN
Operating pressure: 300 bar

ICE 150T

Clamp type: Double clamp
Clamp force: 1500 kN
Operating pressure: 300 bar

ICE 175T

Clamp type: Double clamp
Clamp force: 1750 kN
Operating pressure: 300 bar

ICE 200TC

Clamp type: Double clamp
Clamp force: 2000 kN
Operating pressure: 320 bar

ICE 210TC

Clamp type: Pile clamp
Clamp force: 2000 kN
Operating pressure: 320 bar

ICE 350T

Clamp type: Double clamp
Clamp force: 3500 kN
Operating pressure: 320 bar

ICE 60TP

Clamp type: Pile clamp
Clamp force: 600 kN
Operating pressure: 320 bar

ICE 120TP

Clamp type: Pile clamp
Clamp force: 1200 kN
Operating pressure: 320 bar

Used Machines

PVE 2316VM + ICE 500RF

1998
Good working condition
Netherlands

PVE 20HKV

2009
New
Netherlands

PVE 2313 + 250PP

1991
Running condition
Netherlands

PVE 2315

1994
Running condition
Netherlands

ICE 330PP

2009
Overhauled
Netherlands
